e Aumark

Product DescriptionSpecificationI. Mass ParametersGross Vehicle Weight (G.V.W.)11500 kgCurb Weight (Chassis)4225 kgLoad Mass7080 kgII. Dimension ParametersChassis Overall Dimension

Transmission Type: Manual

Drive Wheel: 4*2

Product Type: E Aumark

Origin: China

Trademark: Foton

Condition: New

Load Capacity: 1-10t

Power: Electric Energy

Online inquiry

Description Warranty Info

Description

Product Description

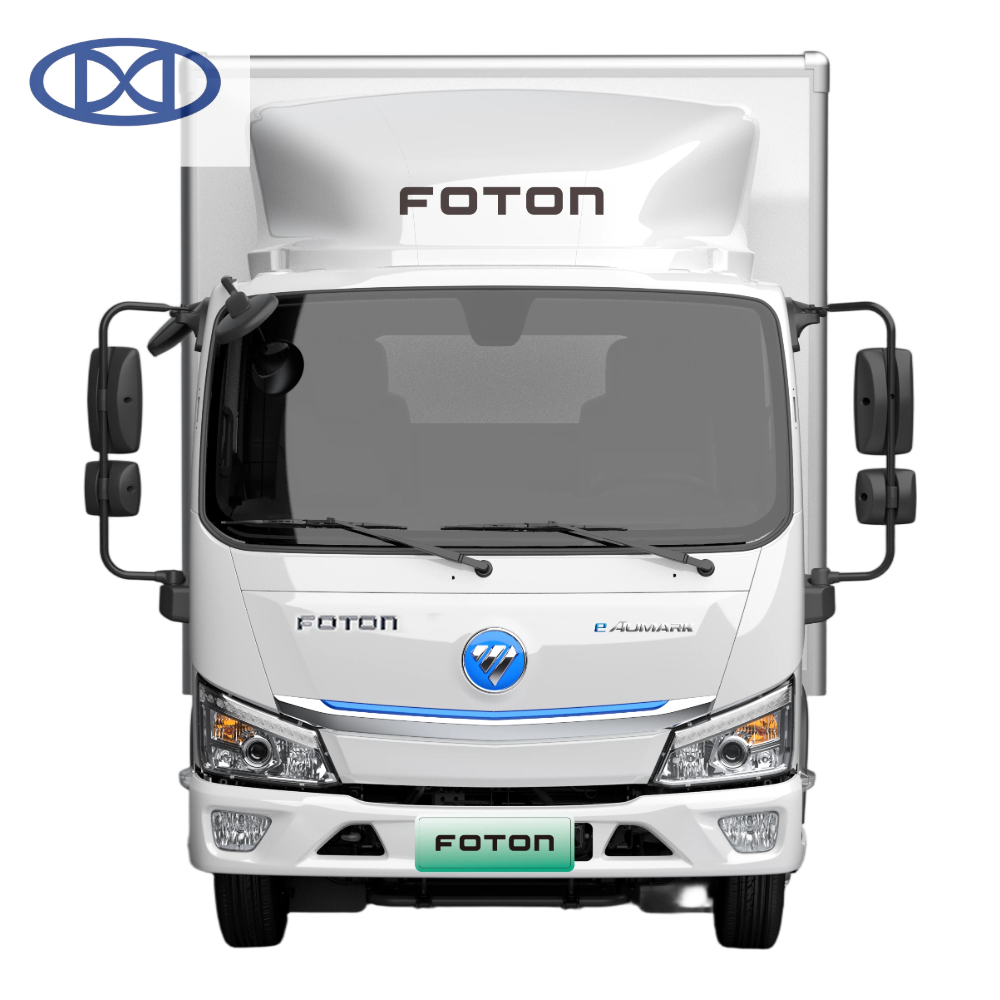

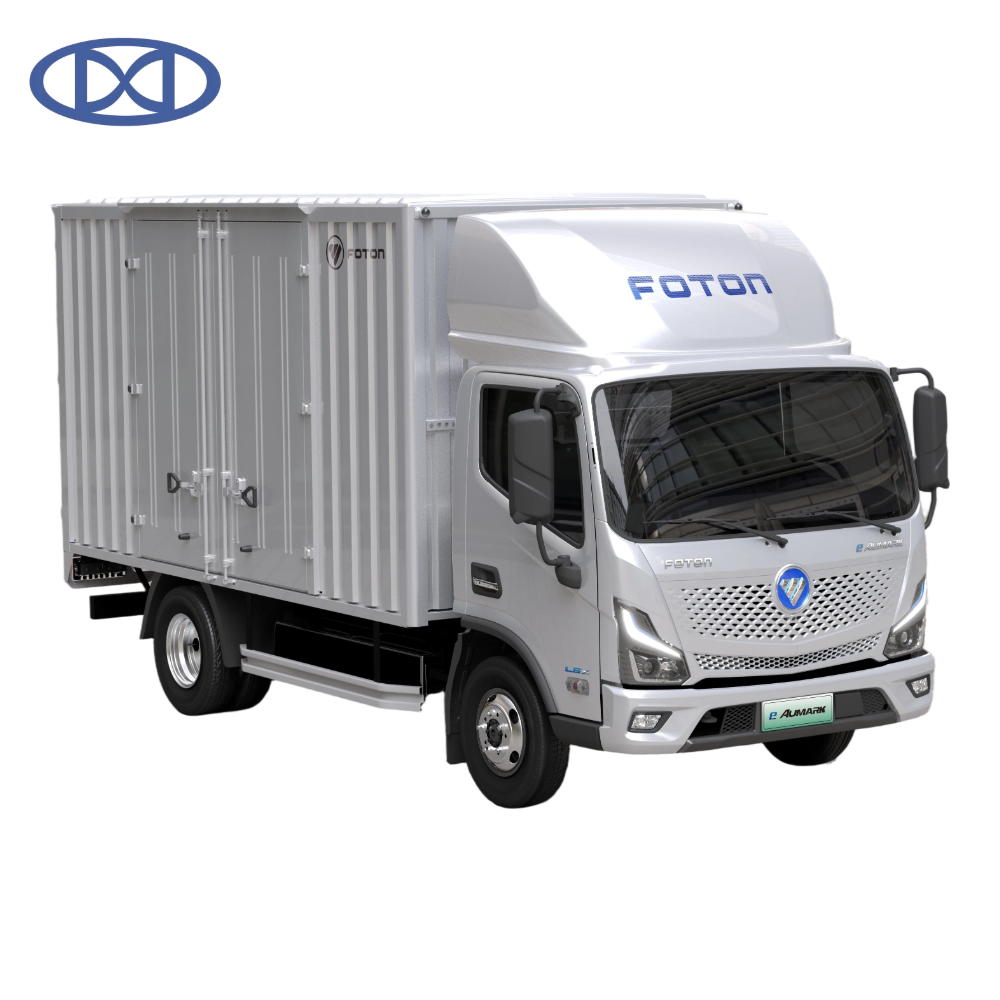

Foton Electric Mini Cargo Truck 7-Ton 90km/H EV Light Truck Energy Saving and Environmental Protection

Specification

I. Mass Parameters
Gross Vehicle Weight (G.V.W.)	11500 kg	Curb Weight (Chassis)	4225 kg
Load Mass	7080 kg
II. Dimension Parameters
Chassis Overall Dimension	5975×2130×2360 mm	Wheelbase	3360 mm
Wheel Tread (Front/Rear)	1718/1615 mm	Overhang (Front/Rear)	1130/1980 mm
III. Performance Parameters
Maximum Speed	90 km/h	Grade Ability	25%
WTVC Driving Range	220 km	AC/DC Charging Time (SOC 20%-100%)	6.6/1.5 h
IV. Motor & Transmission
Motor Type	Permanent Magnet Synchronous Motor	Rated/Peak Power	135/260 kW
Rated/Peak Torque	1430/2800 N·m	Motor Drive Type	Direct Drive Motor
V. Power Electronic Unit (PEU)
PEU Type	4-in-1 Integrated Unit	PEU Integrated Components	MCU / DCDC / Oil Pump DCAC / PDU
PEU Operating Voltage	576 VDC	PEU Maximum Current	670 Aac
On-board Power Distribution Rated/Peak Power	10/15 kW
VI. Traction Battery
Battery Cell Material	LFP (Lithium Iron Phosphate)	Battery Capacity	162.28 kWh
Battery Voltage	540.96 VDC	Battery Weight	1108±32 kg
Battery Cooling Type	Liquid Cooling	Battery Layout	Side of Frame Mounted
VII. Charging System
Charging Mode	AC/DC Dual Charging	On-board Charger Power	22 kW
BMS Maximum Allowed Charging Power	108 kW	Charging Socket Type	CCS TYPE2 (EU Standard)
VIII. Front & Rear Axles
Front Axle Type	Forged I-beam	Front Axle Rated Load	4 t
Rear Axle Model	340	Rear Axle Type	Stamping Welding Type
Rear Axle Rated Load	6.5 t	Final Drive Ratio	4.333
IX. Frame
Frame Outer Width	860/860/802 mm	Frame Rail Section	220×70×6.0 mm
Frame Structure	Riveting
X. Suspension
Front Suspension	Non-independent Vertical Leaf Spring Suspension	Front Leaf Spring Quantity	3
Front Stabilizer Bar	Equipped	Rear Suspension	Non-independent Vertical Leaf Spring Suspension
Rear Leaf Spring Quantity	4+3
XI. Steering System
Steering Gear Type	Circulating Ball Type	Steering Assist Type	Electric Hydraulic Power Steering
Adjustable Steering Column	Equipped	Energy Absorbing Steering Column	Equipped
Multi-function Steering Wheel	Equipped
XII. Wheels & Tires
Standard Tire Size	235/75R17.5	Tire Quantity	6+1
Tubeless Tire	Equipped	Steel Rim	Equipped
XIII. Braking & Safety
Brake System Type	Pneumatic Brake	Front Brake Type	Disc Brake
Rear Brake Type	Drum Brake	Parking Brake Type	Air Cut-off Brake
Automatic Brake Clearance Adjusting Arm	Equipped
XIV. Auxiliary Battery
Vehicle System Voltage	24 VDC	Battery Capacity & Quantity	60 Ah × 2
Rear brake	Disc brake	Assist power of brake	No assist
Parking brake	EPB spring energy storage air brake	Brake clearance automatic adjusting	Automatic adjustment

*More parameters can be customised, please contact us for more information.
*The product price is for reference only, and the actual transaction price is determined by the configuration required by the customer.
If you want to know more about Electric Cargo Van Truck , please contact us now!

Product Description

WHY CHOOSE FOTON Electric Light Truck

The FOTON Electric Light Truck is a zero-emission, high-efficiency urban logistics solution created by FOTON Motor. Leveraging advanced "Three Power Core" technologies (battery, motor, electronic control), the FOTON Electric Light Truck features core advantages such as low operating costs, strong power, and intelligent reliability. It is an ideal green transport option for scenarios like urban distribution, express delivery, and supermarket delivery.

Key Advantages:
Zero Emissions, Eco-Friendly: Pure electric drive with no exhaust emissions, supporting sustainable urban development.
Low Operating Costs: Electricity costs are significantly lower than fuel costs, effectively reducing daily operating expenses.
Strong Power, Comfortable Driving: The motor delivers high instantaneous torque for quick acceleration and quiet, noise-free operation.
Intelligent Connectivity, Efficient Management: Optional intelligent fleet management system enables vehicle monitoring and dispatching.
Reliable Range, Safe & Compliant: Multiple battery capacity options are available to meet different mileage requirements, complying with national new energy standards.

Jointly built by a lineup of top-tier brands and a globally leading core component supply system

·Battery:CATL, the leader in the battery industry in China. They are designed with various frontier technologies such as multi-specific energy, long service lifeand automatic temperature control, ensuring worry-free travel.
·Position and speed sensors: TAMAGAWA resolver;

·Bearing: SKF,Sweden;

·Insulating paint, enameled wire, insulating layer: DuPont, America;

·Shafting: CrNiMo materials meeting American standards, plus carbonitriding, ensuring no shaft breakage forever.

The Power Battery

CATL – 3rd-generation LFP battery, the optimal choice for commercial vehicle power batteries.

Battery energy density: 159 Wh/kg,Pure electric range: WLTP 180+ km.Battery cycle life exceeds 2,800 cycles, offering a longer service lifespan.The power battery adopts liquid cooling and PTC heating, resulting in higher charging efficiency.

Battery pack with IP68 protection rating

The battery shell adopts high-strength metal composite materials, featuring high rigidity and corrosion resistance. It is fully dustproof and can withstand long-term soaking under designated water pressure without damage.

Rational layout and standard arrangement

Optimized front-rear weight distribution enhances driving control and stability.Middle-mounted battery fixed by dedicated brackets, stable and anti-loose.

Integration

High-strength Lightweight Materials

Its integrated motor-drive axle eliminates transmission shafts to cut weight and boost efficiency, with peak motor efficiency over 96.5% for longer cruising mileage. Equipped with an all-in-one electronic controller, eAumark achieves superior vehicle integration and optimized control performance.

Lightweight design cuts curb weight greatly: high-strength 750L chassis saves 23kg, cast-aluminum electric steering gear trims 5kg, optimized front axle with variable-section leaf springs reduces 130kg, and aluminum alloy wheels slash another 53kg, paired with 2+4 rear leaf springs while retaining full load capacity.
