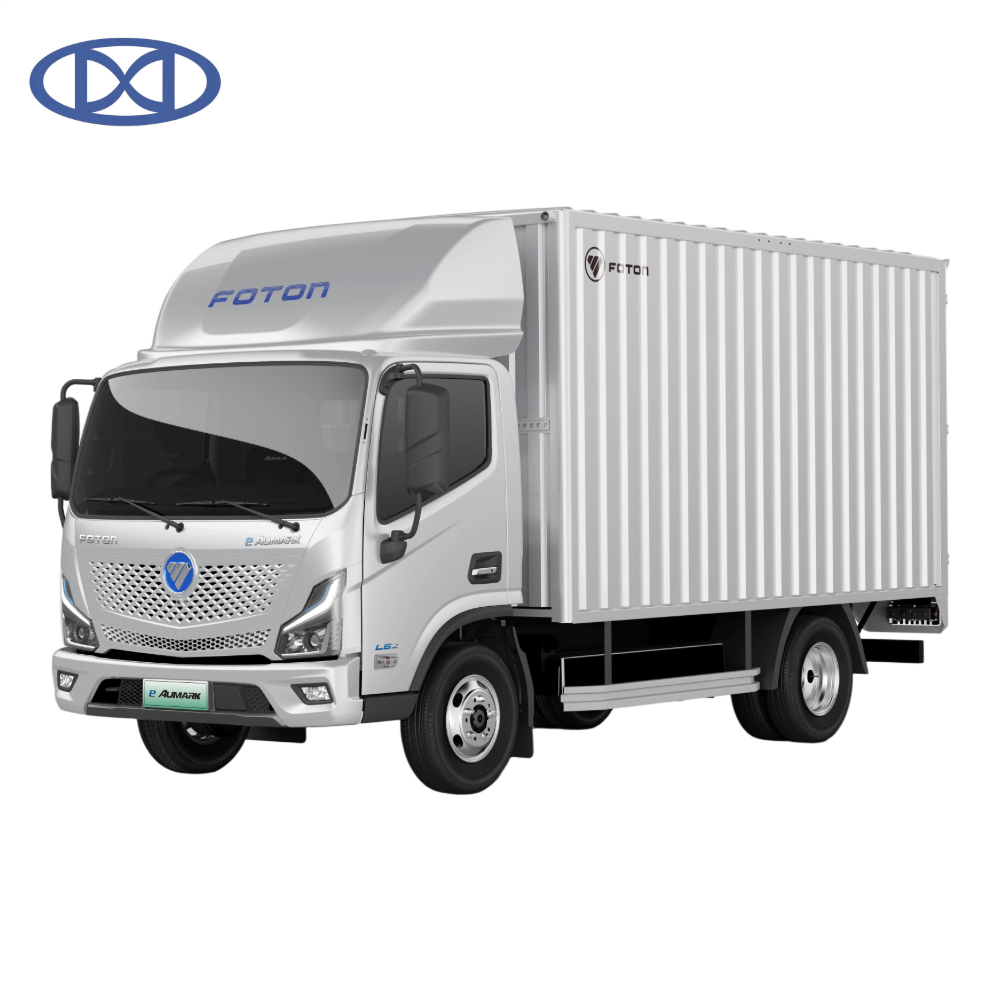

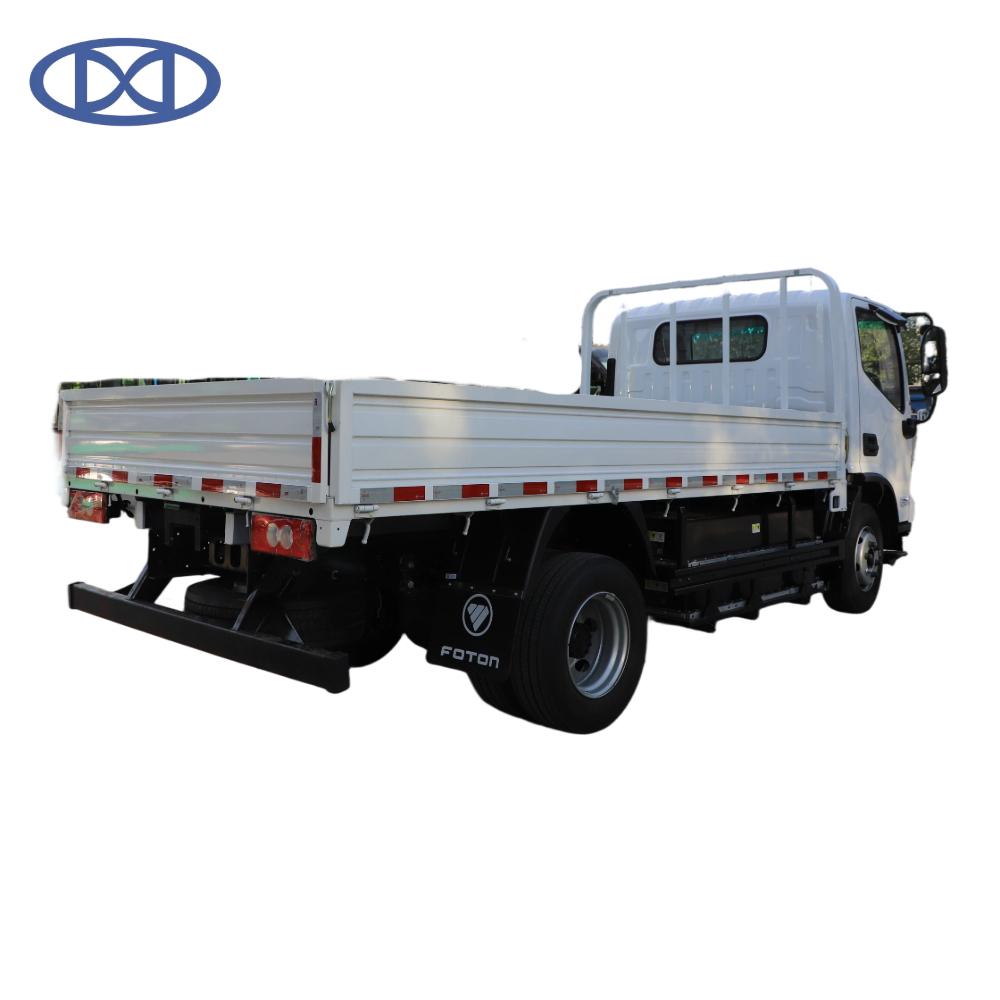

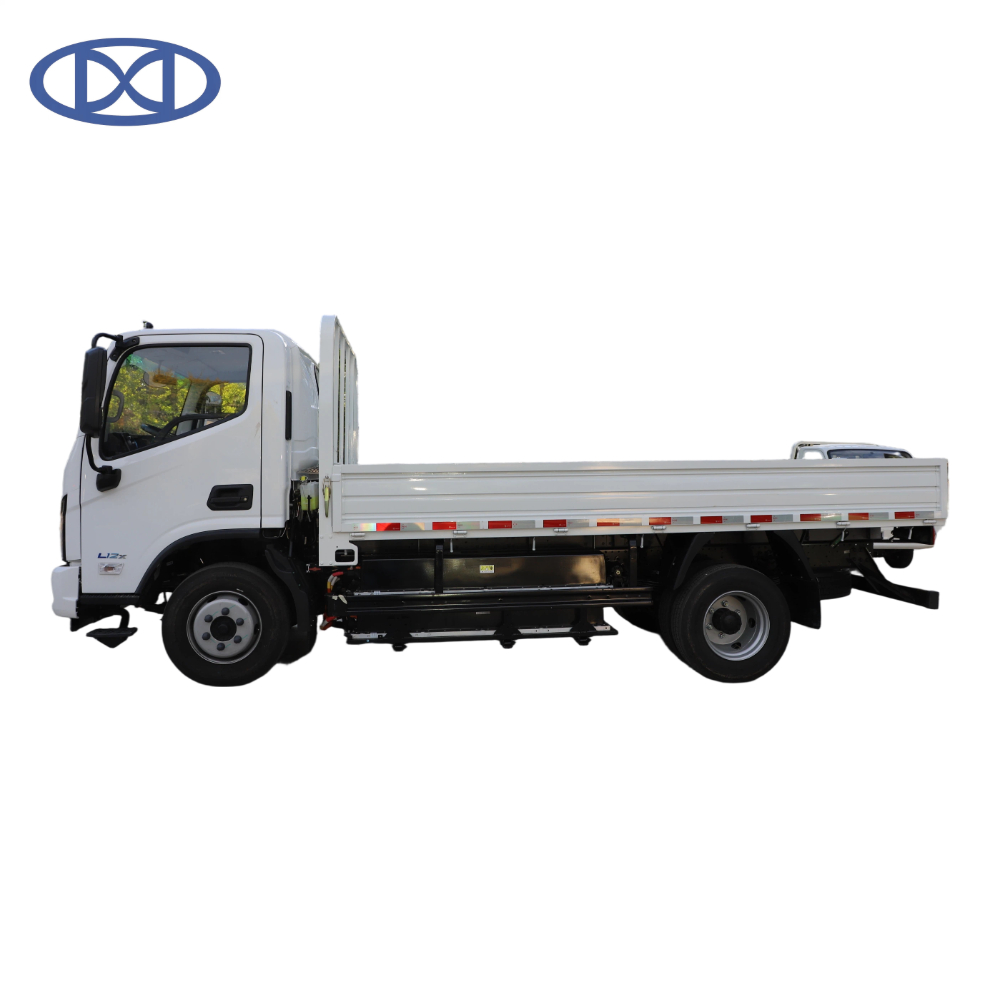

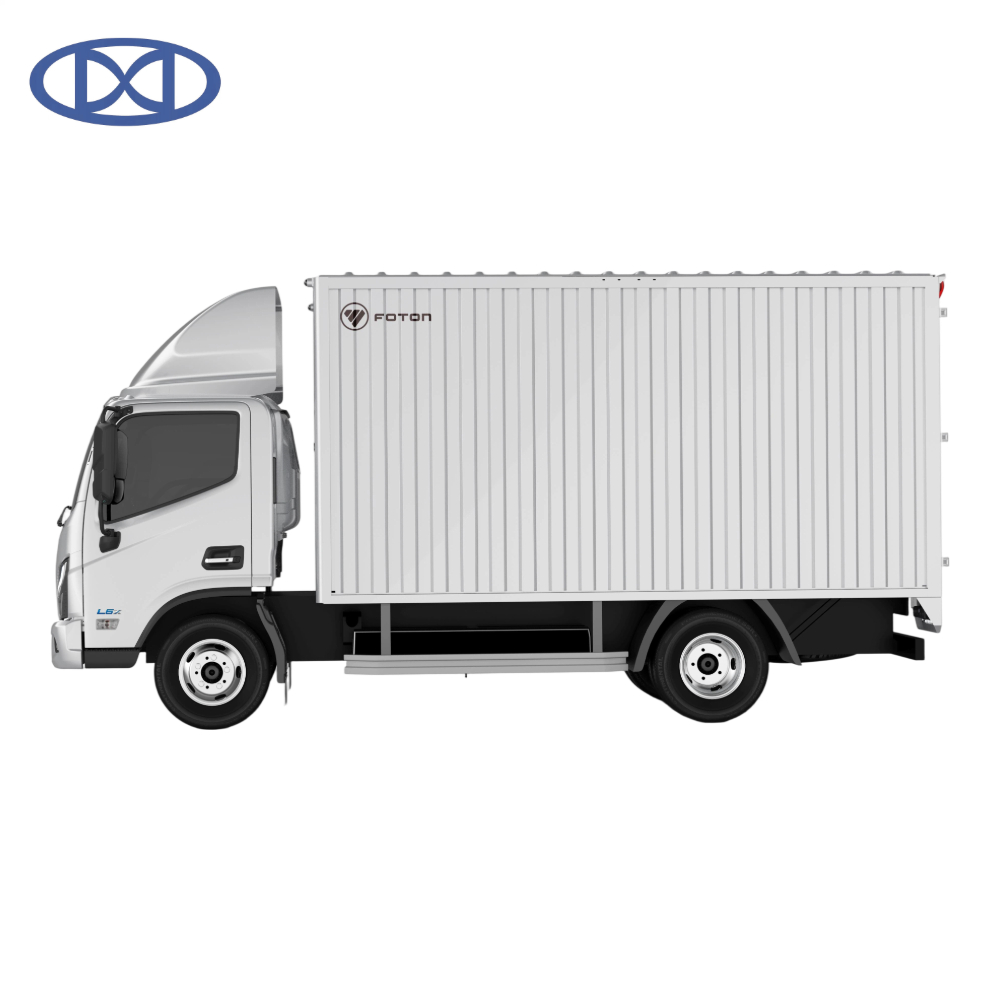

Foton E Aumark

More parameters can be customised, please contact us for more information.*The product price is for reference only, and the actual transaction price is determined by the configuration required by the customer.If you want to know more about Electric Cargo Van Truck , please contact us now!

Transmission Type: Automatic

Drive Wheel: 4*2

Product Type: E Aumark

Origin: China

Trademark: Foton

Condition: New

Load Capacity: 1-10t

Power: Electric Energy

Online inquiry

Description Warranty Info

Description

Product Description

Electric Van Logistics Truck Zero Emission Desiqn Left Hand Drive Urban Transport Mini EV Truck

Specification

MASS
Gross Vehicle Weight(G.V.W.)	7480 kg	Curb weight-chassis	2950 kg
Dimension
Dimension(Chassis)	5995×2205×2280 mm	Wheel base	3360 mm
Wheel Tread(Front/Rear)	1780/1720 mm	Overhang F/R	3/4+2 leaf spring
Min. Ground Clearance	160 mm
Performance
Maximum Speed	90 km/h	Grade Ability	25%
Turning Diameter	≤13.5 m	Acceleration	7.7 s
Range	180 km(C-WTVC,25℃)	AC Charge / DC charge	5/1 h(25℃)
Motor/Transmission
Motor Type	Permanent Magnet Synchronous Motor	Motor model	FTTBP150A
Power Rate/Peak	75/150 kW	Torque Rate/Peak	250/560 Nm
Peak speed	12000 rpm	Type	Electric drive axle
Motor Reduction Ratio	15.52
Power&Electronic Unit(PEU)
Type	FTIVT200	Integration unit	MCU,DCDC,PDU
Voltage	540 VDC	Max. current	400 Aac
Power distribution rating/peak	15/30 kW
Traction Battery
Manufacturer	CATL	Battery Composition Material	LFP
Capacity	100.46 kWh	Voltage	502.32 VDC
Weight	642 kg	Cooling type	Liquid cooling
Layout	Middle layout
Charge System
Charge mode	EU standard AC & DC charging	OBC Charge	22 kW
BMS Max. allowed charging power	100 kW continuous / 200 kW peak feedback	Charging socket	EU standard CCS TYPE2
Axle
Front axle type	Forged I-beam	Front axle capacity	3 t
Rear axle type	Electric drive axle	Rear axle capacity	6 t
Ratio	15.52
Frame
Width	860/800 mm	Frame rail section	214 mm
The frame structure	Side beam frame
Suspension
Front suspension	Non-independent leaf spring	Pieces of leaf spring	3 pieces
Front stabilizer bar	Standard	Rear suspension	Non-independent leaf spring
Pieces of leaf spring	4+2 pieces
Steering
Steering type	Electric recirculating ball type	Steering Power form	Electric power assist
Adjustable steering	Standard	Energy absorption steering	Standard
Multi-function steering wheel	Standard
Wheel Tyre
Tyre(standard)	215/75 R17.5	Number of tires	6+1
Tubeless	Standard	Rim(steel)	Standard
Rim(aluminum)	Standard
Brake/Safety
Brake	Air brake	Front brake	Disc brake
Rear brake	Disc brake	Assist power of brake	No assist
Parking brake	EPB spring energy storage air brake	Brake clearance automatic adjusting	Automatic adjustment

*More parameters can be customised, please contact us for more information.
*The product price is for reference only, and the actual transaction price is determined by the configuration required by the customer.
If you want to know more about Electric Cargo Van Truck , please contact us now!

Product Description

WHY CHOOSE FOTON Electric Light Truck

The FOTON Electric Light Truck is a zero-emission, high-efficiency urban logistics solution created by FOTON Motor. Leveraging advanced "Three Power Core" technologies (battery, motor, electronic control), the FOTON Electric Light Truck features core advantages such as low operating costs, strong power, and intelligent reliability. It is an ideal green transport option for scenarios like urban distribution, express delivery, and supermarket delivery.

Key Advantages:
Zero Emissions, Eco-Friendly: Pure electric drive with no exhaust emissions, supporting sustainable urban development.
Low Operating Costs: Electricity costs are significantly lower than fuel costs, effectively reducing daily operating expenses.
Strong Power, Comfortable Driving: The motor delivers high instantaneous torque for quick acceleration and quiet, noise-free operation.
Intelligent Connectivity, Efficient Management: Optional intelligent fleet management system enables vehicle monitoring and dispatching.
Reliable Range, Safe & Compliant: Multiple battery capacity options are available to meet different mileage requirements, complying with national new energy standards.

Jointly built by a lineup of top-tier brands and a globally leading core component supply system

·Battery:CATL, the leader in the battery industry in China. They are designed with various frontier technologies such as multi-specific energy, long service lifeand automatic temperature control, ensuring worry-free travel.
·Position and speed sensors: TAMAGAWA resolver;

·Bearing: SKF,Sweden;

·Insulating paint, enameled wire, insulating layer: DuPont, America;

·Shafting: CrNiMo materials meeting American standards, plus carbonitriding, ensuring no shaft breakage forever.

The Power Battery

CATL – 3rd-generation LFP battery, the optimal choice for commercial vehicle power batteries.

Battery energy density: 159 Wh/kg,Pure electric range: WLTP 180+ km.Battery cycle life exceeds 2,800 cycles, offering a longer service lifespan.The power battery adopts liquid cooling and PTC heating, resulting in higher charging efficiency.

Battery pack with IP68 protection rating

The battery shell adopts high-strength metal composite materials, featuring high rigidity and corrosion resistance. It is fully dustproof and can withstand long-term soaking under designated water pressure without damage.

Rational layout and standard arrangement

Optimized front-rear weight distribution enhances driving control and stability.Middle-mounted battery fixed by dedicated brackets, stable and anti-loose.

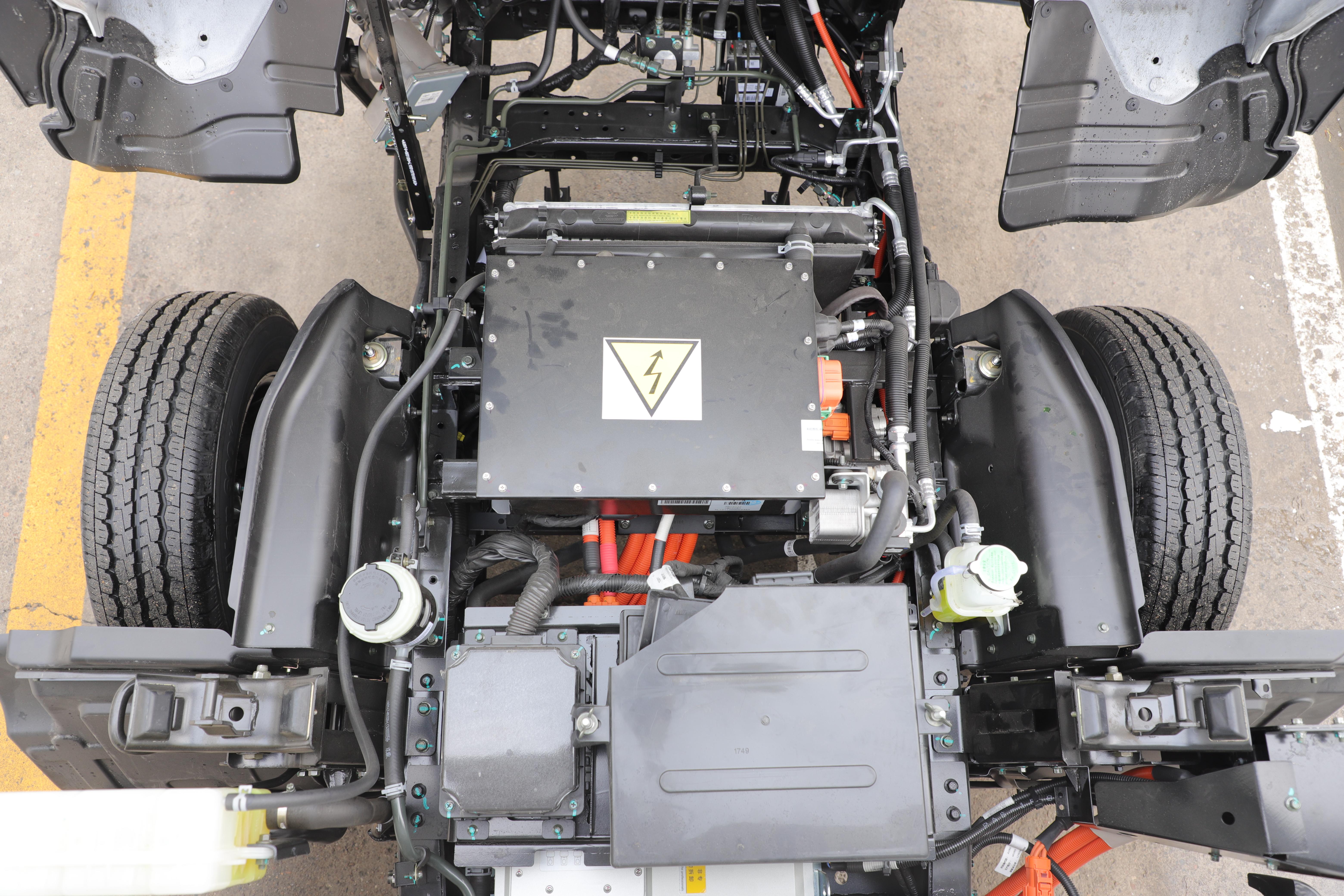

Integration

High-strength Lightweight Materials

Its integrated motor-drive axle eliminates transmission shafts to cut weight and boost efficiency, with peak motor efficiency over 96.5% for longer cruising mileage. Equipped with an all-in-one electronic controller, eAumark achieves superior vehicle integration and optimized control performance.

Lightweight design cuts curb weight greatly: high-strength 750L chassis saves 23kg, cast-aluminum electric steering gear trims 5kg, optimized front axle with variable-section leaf springs reduces 130kg, and aluminum alloy wheels slash another 53kg, paired with 2+4 rear leaf springs while retaining full load capacity.
